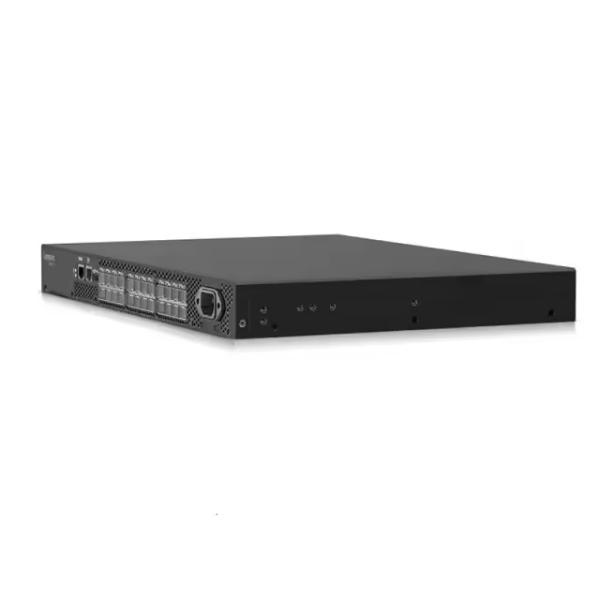

Lenovo ThinkSystem DB630S 32Gb FC SAN Switch

Product Categories

Shanghai Qingguang Electronic Technology Co., Ltd.

Contact Now

Name: Lenovo ThinkSystem DB630S 32Gb FC SAN Switch
Brand: Lenovo
Price: 10 USD

Brand Name : Lenovo

Model Number : DB630S

Place of Origin : China

MOQ : 1 pieces

Price : $10,000.00 - $20,000.00/pieces

Payment Terms : T/T

Supply Ability : 100 Piece/Pieces per Month

Delivery Time : 1-2months

Packaging Details : Carton Packing

Product Category : Switch

Model : DB630S

Products Status : Stock

Ports : ≥ 48

Form factor : Standalone or 2U rack mount

Port : Shenzhen/Beijing

Contact Now

Details Images

Form factor	Standalone or 2U rack mount
Ports	* 96x SFP+ ports: * Model CTO5: 48 ports activated and 48x 32 Gb FC SWL SFP+ transceivers included; up to two optional 24-port activation licenses or bundles (24-port licenses and 24x 32 Gb FC SWL SFP+ transceivers) * Model CTO6: 96 ports activated and 96x 32 Gb FC SWL SFP+ transceivers included * 8x QSFP+ ports (require an optional activation license or bundle [32-port license pack and 8x 128 Gb FC SWL SFP+ V2 transceivers])
Media types	* 128 Gb (4x 32 Gb) FC QSFP+: short wavelength (SWL), long wavelength (LWL) * 4x 16 Gb FC QSFP+: SWL * 32 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) * 16 Gb FC SFP+: SWL, LWL, extended long wavelength (ELWL) * 10 Gb FC SFP+: SWL, LWL
Port speeds	* 128 Gb (4x 32 Gb) FC SWL QSFP+: 128 Gbps, 4x 32 Gbps, or 4x 16 Gbps * 128 Gb (4x 32 Gb) FC LWL QSFP+: 128 Gbps or 4x 32 Gbps fixed * 4x 16 Gb FC QSFP+: 4x 16/8/4 Gbps auto-sensing * 32 Gb FC SFP+: 32/16/8 Gbps auto-sensing * 16 Gb FC SFP+: 16/8/4 Gbps auto-sensing * 10 Gb FC SFP+: 10 Gbps fixed
FC port types	F_Port, E_Port, EX_Port (Requires an optional Integrated Routing License), M_Port (Mirror Port), D_Port (Diagnostic Port)
Dimensions	Height: 87 mm (3.4 in.); width: 440 mm (17.3 in.); depth: 610 mm (24.0 in.)
Weight	Empty: 19.05 kg (42.0 lb.); Fully configured: 21.3 kg (47.0 lb.)
